What Separates a Motorsport Harness from Everything Else

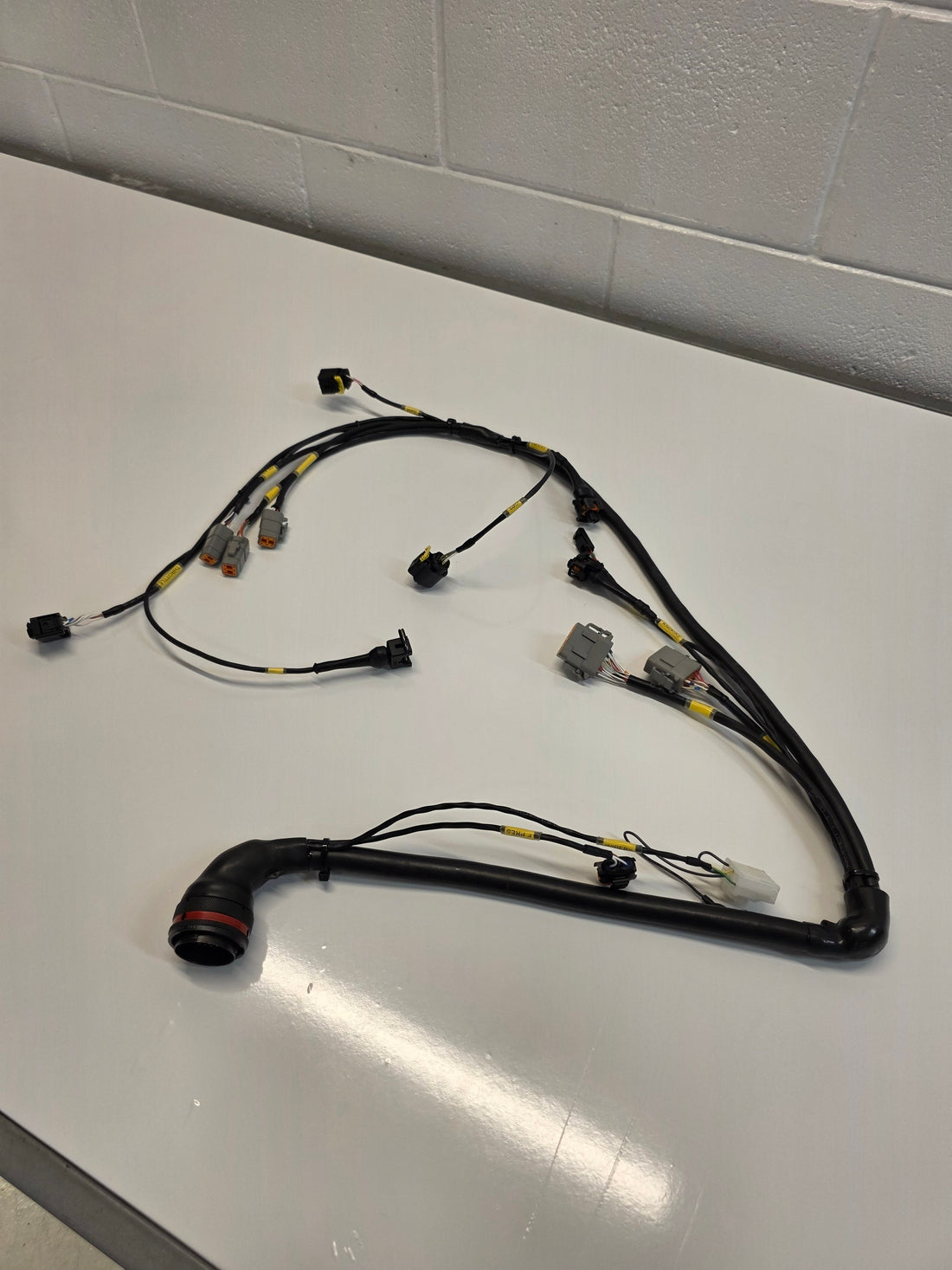

If you've ever seen a professionally built motorsport wiring harness up close — the tight, consistent lacing, the slim profile, the precision terminations — you'll know immediately that it's a different class of work to a standard street harness.

That difference isn't just aesthetic. Every material choice in a motorsport harness exists for a reason: weight, reliability, heat resistance, vibration tolerance, and longevity under conditions that would destroy ordinary automotive wiring.

At Turner Auto, we build full custom motorsport harnesses for competition vehicles, drift cars, time attack builds, and serious track cars. This article breaks down the materials and techniques we use — and why they matter.

Tefzel Wire (PTFE-Insulated): The Foundation of a Proper Harness

Standard automotive wire — TXL, GXL, SXL — is perfectly adequate for street builds. But for motorsport applications, Tefzel wire (also known as ETFE or MIL-spec wire) is the material of choice, and for good reason.

What Is Tefzel?

Tefzel is a brand name for ETFE (Ethylene Tetrafluoroethylene) — a fluoropolymer insulation originally developed for aerospace and military applications. It's the same family of materials as PTFE (Teflon), engineered specifically for wire insulation where performance is non-negotiable.

Why Tefzel for Motorsport?

• Weight — Tefzel insulation is significantly thinner than standard automotive wire insulation for the same conductor size. In a full vehicle harness, this translates to meaningful weight savings — important in any competition application.
• Heat resistance — Tefzel wire is rated to 150°C continuous, compared to 105°C for TXL. In a motorsport environment — near turbos, exhausts, and high-output engines — this margin matters.
• Abrasion resistance — Despite its thin wall, Tefzel insulation is exceptionally tough. It resists cuts, abrasion, and chafing far better than standard PVC-based insulation.
• Chemical resistance — Fuel, oil, brake fluid, coolant — Tefzel shrugs off all of them. Standard insulation can swell, crack, or degrade with prolonged chemical exposure.
• Flexibility — Tefzel wire remains flexible even at low temperatures, which matters for harnesses that need to route through tight spaces or move with suspension components.
• Longevity — A Tefzel harness built correctly will outlast the car. The insulation doesn't age, crack, or become brittle the way standard automotive wire does over time.

The trade-off is cost — Tefzel wire is significantly more expensive than standard automotive wire. But for a competition vehicle where reliability is everything, it's not a trade-off worth making the other way.

Autosport Connectors: The Gold Standard for Competition Terminations

The connector is the most vulnerable point in any wiring harness. It's where the wire terminates, where mating and unmating happens, and where vibration, moisture, and contamination do their worst. In motorsport, connector failure is not an option.

What Are Autosport Connectors?

Autosport connectors (also referred to as AS connectors or mil-spec circular connectors) are a family of high-performance circular connectors originally developed for aerospace and defence applications. They're now the standard choice for serious motorsport wiring worldwide.

Why Autosport Connectors?

• Extreme vibration resistance — The bayonet locking mechanism provides a positive, rattle-free connection that won't work loose under sustained vibration — unlike push-fit automotive connectors.
• High pin density — Autosport connectors pack a large number of circuits into a small, lightweight shell. A single connector can carry dozens of circuits cleanly and compactly.
• Sealed construction — Properly assembled Autosport connectors are fully sealed against moisture, dust, and fluid ingress.
• Gold-plated contacts — Gold plating ensures low contact resistance and long-term corrosion resistance, even in harsh environments.
• Serviceability — Individual pins can be removed and replaced without cutting the harness — critical for a competition vehicle that needs to be serviced quickly between events.
• Professional appearance — There's a reason every serious motorsport harness uses these connectors. They look the part because they are the part.

Common Applications in a Motorsport Harness

Autosport connectors are typically used at the ECU bulkhead, at major harness breakout points, and anywhere the harness needs to be disconnected for engine removal or service. They're also used at the dash, PDM (Power Distribution Module), and data logger connections on fully built competition cars.

DR-25: The Heatshrink That Actually Belongs in a Motorsport Build

Not all heatshrink is created equal. The standard clear or black heatshrink you'll find at a hardware store is fine for basic electrical work. For a motorsport harness, Raychem DR-25 is the industry standard — and the difference is significant.

What Is DR-25?

DR-25 is a dual-wall, adhesive-lined heatshrink tubing manufactured by Raychem (now TE Connectivity). It was originally developed for aerospace and military applications and has become the go-to choice for motorsport harness builders worldwide.

Why DR-25?

• Dual-wall construction — An outer wall of modified polyolefin shrinks down over the harness, while an inner wall of hot-melt adhesive flows into gaps and bonds to the wire bundle beneath. The result is a fully sealed, rigid-but-flexible sleeve that locks everything in place.
• Heat rating — DR-25 is rated to 135°C continuous, with short-term resistance to much higher temperatures. It won't soften or deform near exhaust heat the way standard heatshrink will.
• Abrasion resistance — The outer wall is tough and resistant to chafing, cuts, and abrasion. Harness sections routed through tight areas or near moving components are protected.
• Fluid resistance — DR-25 resists fuel, oil, and most automotive fluids. The adhesive inner wall seals the harness against fluid wicking along the wire bundle.
• Flexibility — Despite its toughness, DR-25 remains flexible after shrinking. The harness can still be routed and moved without cracking or delaminating.
• Professional finish — A harness finished in DR-25 looks clean, consistent, and unmistakably professional. It's the visual signature of a properly built motorsport harness.

Expandable Braid & Harness Lacing

Two more elements that define a premium motorsport harness:

Expandable Braid

Woven expandable braid (typically nylon or fibreglass) is used over wire bundles to provide abrasion protection and a clean, consistent appearance. It's lightweight, flexible, and allows the harness to breathe — unlike solid conduit. On sections that don't need the full protection of DR-25, braid provides a neat, professional finish.

Harness Lacing

Traditional harness lacing — using waxed lacing cord to tie wire bundles at regular intervals — is still used in the highest-quality motorsport harnesses. It keeps the bundle tight and consistent, prevents individual wires from moving independently under vibration, and produces the distinctive, uniform appearance of a properly built harness. It's time-consuming, but the result speaks for itself.

When Do You Need a Full Motorsport Harness?

Not every build needs a full Tefzel and Autosport connector harness. Here's a simple guide:

• Street car / modified road car — A quality harness using TXL wire, Deutsch connectors, and DR-25 on high-heat sections is entirely appropriate and significantly more cost-effective.
• Track day / club motorsport — Tefzel wire and DR-25 throughout is worth the investment. Autosport connectors at key breakout points add serviceability without going full mil-spec everywhere.
• Competition / time attack / drift — Full Tefzel, Autosport connectors throughout, DR-25 and braid finish. This is where the premium materials pay for themselves in reliability and weight.
• Professional motorsport — Full mil-spec build, no compromises. Every gram and every connection matters.

Turner Auto Motorsport Harness Builds

We design and build full custom motorsport wiring harnesses in Auckland. Every harness is built to the specification your build requires — from the wire gauge and insulation type through to connector selection, routing, and finish.

We work with:

• Tefzel (ETFE) wire in all gauges
• Autosport / mil-spec circular connectors
• Deutsch DT, DTM, and AT connectors
• Raychem DR-25 dual-wall heatshrink
• Expandable nylon and fibreglass braid
• Traditional waxed harness lacing
• All leading ECU platforms — MaxxEcu, Link ECU, Haltech, ECU Master

If you're building a serious competition car and want the wiring done properly, we'd love to talk about your project.
