MaxxEcu PDM20 Kit

MaxxEcu PDM20 Kit

$2,840.00 NZD
$2,840.00 NZD
Sale Sold out

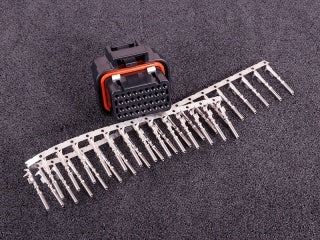

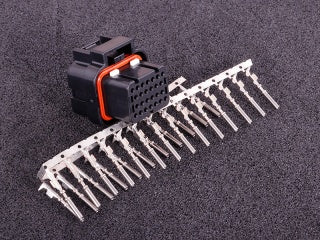

MaxxEcu PDM20 Kit With Connectors And Terminals 26 pin AMP And 34 Pin AMP Superseal

We Can Provide Installation If Needed!

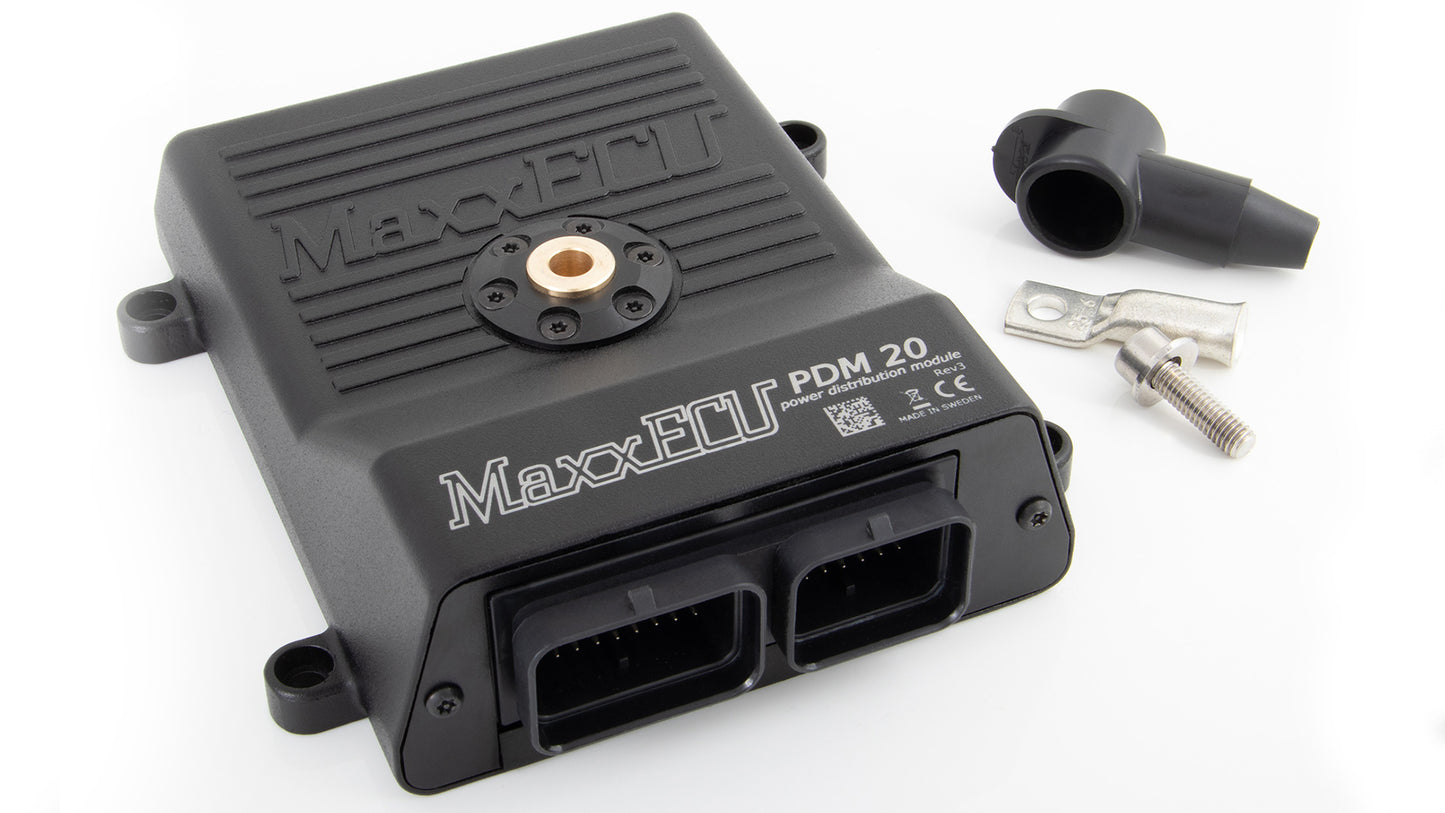

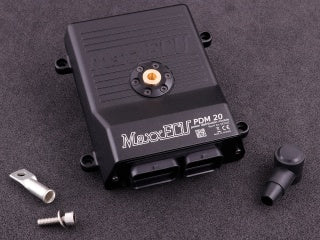

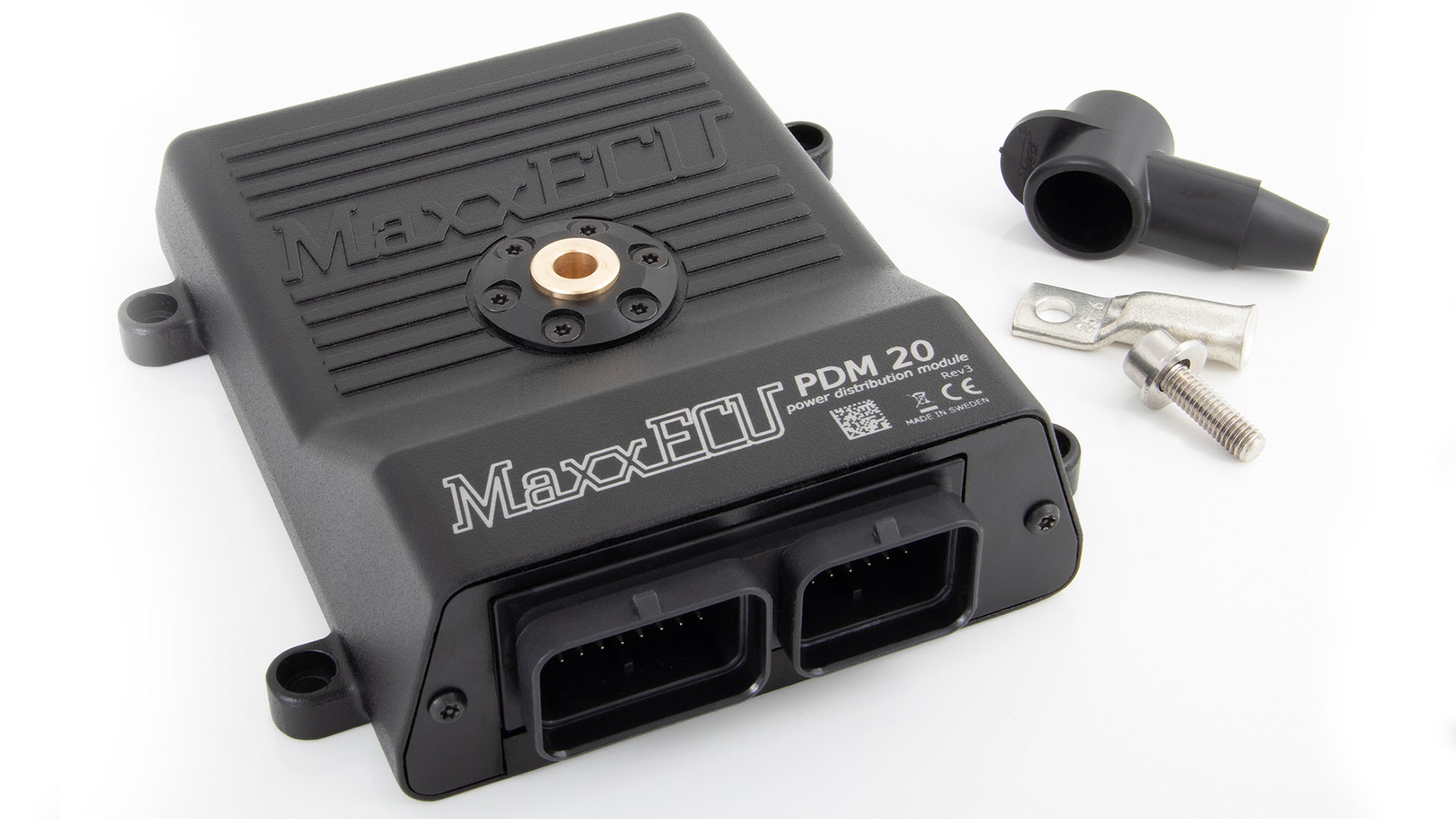

The MaxxECU PDM20 is an advanced Power Distribution Module for MaxxECU units and is designed to replace fuses and relays in a modern way.

  • Max 230A
  • 20 outputs (8x25A 8x15A 4x8A)
  • 7 digital / analog 0-24V inputs
  • All outputs can be PWM controlled
  • Dedicated +5V power supply and sensor ground
  • CAN bus for communication and setup management with MaxxECU MTune PC software
  • Overcurrent protected adjustable levels with automatic restart with soft start option
  • Warning levels for under over currents
  • Works with all MaxxECU devices
  • Support for CAN keypads
  • Error code handling
  • Built-in energy saving mode that draws only 0.004A
